SUBJECT: DIGITAL LIGHT & SIGN CONTROLLER
PRODUCT FEATURES AND SPECIFICATIONS SHEET


       The Digital Light & Sign Controller unit provides 18 user selectable control patterns. In addition, the user may select the desired lamp brightness (0 to 100% in all modes), and rate of change for all animation modes, and the ramping rate for ramping modes. The combination of modes, rates, and brightness allows the low cost controller to duplicate the effects seen in the Disney Electric Light Parade!!

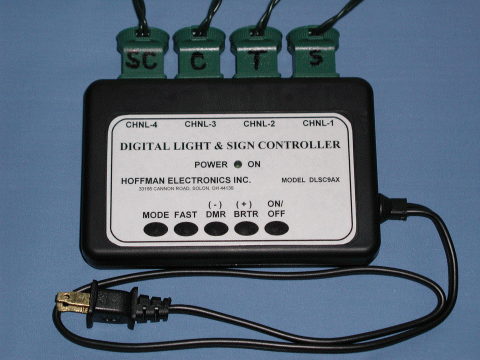

DIGITAL LIGHT & SIGN CONTROLLER
shown connected to seasonal display sign.

FEATURES:

  • Double insulated and water resistant. Should be connected to GFI protected circuit when used outdoors.

  • Full AC output, eliminating lamp failure in wet weather due to bulb wire deplating.

  • 18 Animation and Control Modes. Includes 14 animation and 4 ramping patterns.

  • No control knobs, five push-button switches set all operating parameters.

  • Stores desired operating values automatically, one minute after the last value has been entered.

  • Operating values are stored in non-volatile EEPROM memory.

  • At Power-ON, the unit recalls and executes the last stored mode, brightness, and rate, i.e., turns ON and does what it was last taught or programmed to do.

  • Internal, replaceable, 5mm x 20mm, 4Amp, Slow-Blow fuse.

  • Compact design for ease of concealing and placement.

  • Low cost.
